High quality load cell sensor

Micro Load Cell Stainless Steel weight sensor NV11

The NV11 is stainless steel load cell that it can anti-corrosion and waterproof.The micro load cell has professional equipment testing,certificate approval and high dynamic response frequency to measure the tension and compression force.
  • Item NO.:

    NV11
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    50-1000N
  • Material:

    Stainless steel
  • Dimension:

    Φ12.7*4mm
  • Rated Output:

    1.5mV/V±15%
  • Protection Class:

    IP66/67
  • Cable:

    Φ1.2×3m
Inquiry Now
Product Details

Micro Load Cell Stainless Steel weight sensor NV11

The NV11 is stainless steel load cell that it can anti-corrosion and waterproof.The micro load cell has professional equipment testingcertificate approval and high dynamic response frequency to measure the tension and compression force.



Key feature

Stainless steel material

Micro load cell




Usage & Applications

Push-pull dynamometer

3C product test

Robot field

Automation field

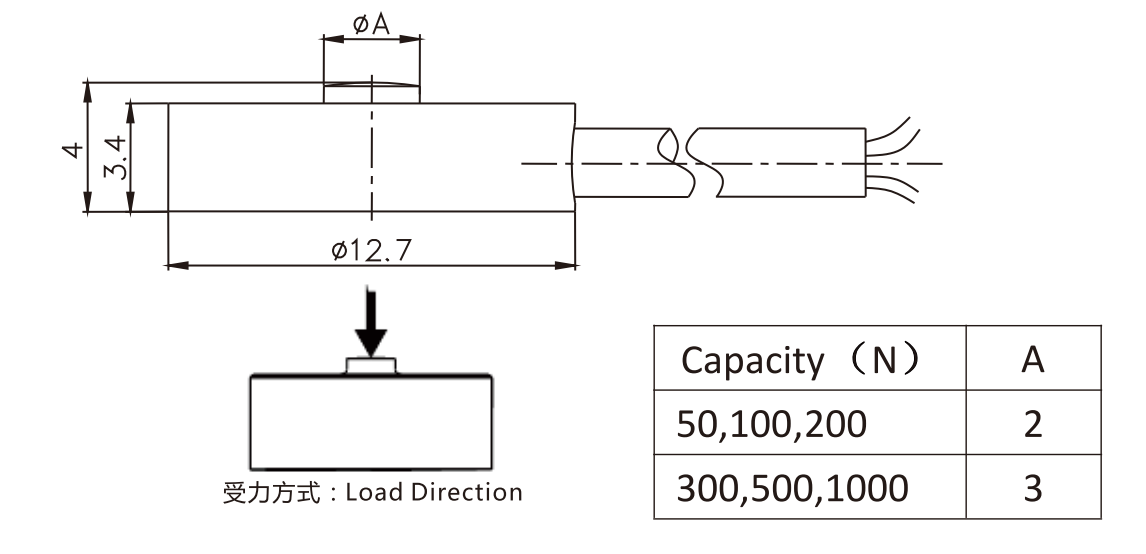

Dimension







NV11 specification

Rated Capacities

50-1000N

Rated Output

1.5mV/V±15%

Zero Balance

±0.0500 mV/V

Non-linearity

0.5%R.O.

Hysteresis

0.2%R.O.

Repeatability

0.2%R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005%R.O./

Temperature Effect On Zero

0.005%R.O./

Input Impedance

800~1100Ω

Output Impedance

800~1100Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

Operating Temperature Range

-20~80

Construction

Stainless Steel

Protection Class

IP66/IP67

Cable

Φ1.2×3m

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
