Miniature Compression Tension Load Cell NV1（50-2000N）
The NV1 is stainless steel material and low profile load cell suit for car press fitting，medical inspection，robot field and automation field.The miniature force sensor delivers high performance, long service life, stable operation and high precision.
Key Features：
Stainless steel material
Micro load cell
Capacity: 50-2000N
Precision: 0.1%R.O.
Protection class: IP66/PI67
Rated Output : 2.0mV/V±10%
Usage & Applications：
Car press fitting,medical inspection,robot field and automation field.

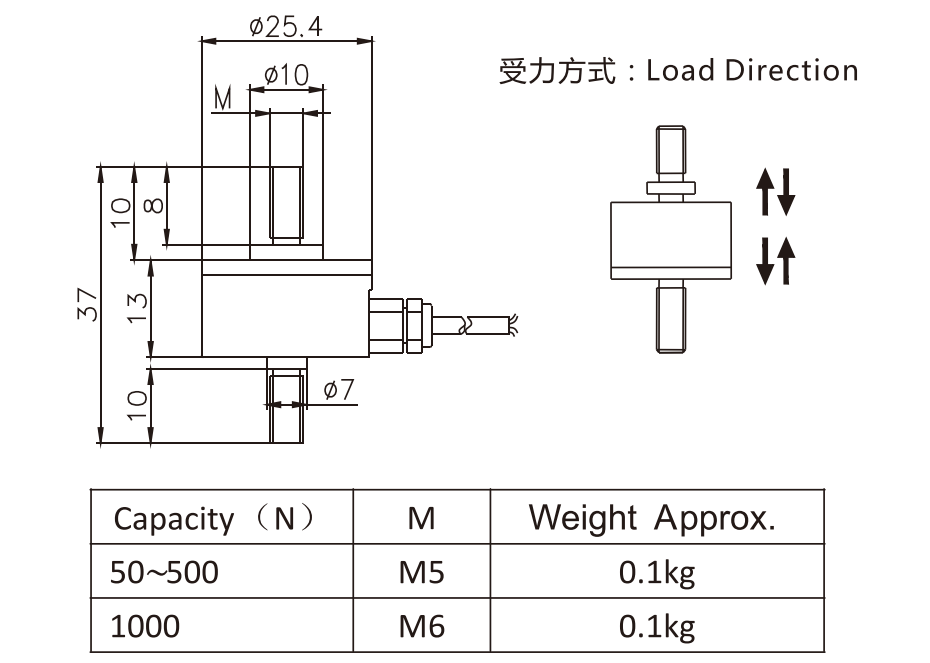

Dimension：
NV1 Specification：
|
Rated Capacities |
50-2000N |
|
Rated Output |
2.0mV/V±10% |
|
Zero Balance |
±0.0500 mV/V |
|
Non-linearity |
0.1%R.O. |
|
Hysteresis |
0.1%R.O. |
|
Repeatability |
0.1%R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.005%R.O./℃ |
|
Temperature Effect On Zero |
0.005%R.O./℃ |
|
Input Impedance |
800~1000Ω |
|
Output Impedance |
800~1000Ω |
|
Insulation Impedance |
≥5000 MΩ/(50VDC) |
|
Recommended Excitation |
10 VDC |
|
Maximum Excitation |
15 VDC |
|
OperatingTemperatureRange |
-20~80 ℃ |
|
Construction |
Stainless Steel |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ3×3m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
