Stainless Steel Micro Button Load Cell NV4
The NV4 is low profile miniature load cell,apply for the measurement and control in the field of industry,the stainless steel material load cell has compact and strong structure,highly accurate and can be stored for a long time to prevent corrosion.
Key Features：
Stainless steel material
Micro load cell
Capacity: 1-100kN
Precision: 0.2%R.O.
Protection class: IP66/PI67
Rated Output : 1.5mV/V±10%
Usage & Applications：
The measurement and control in the field of industry.

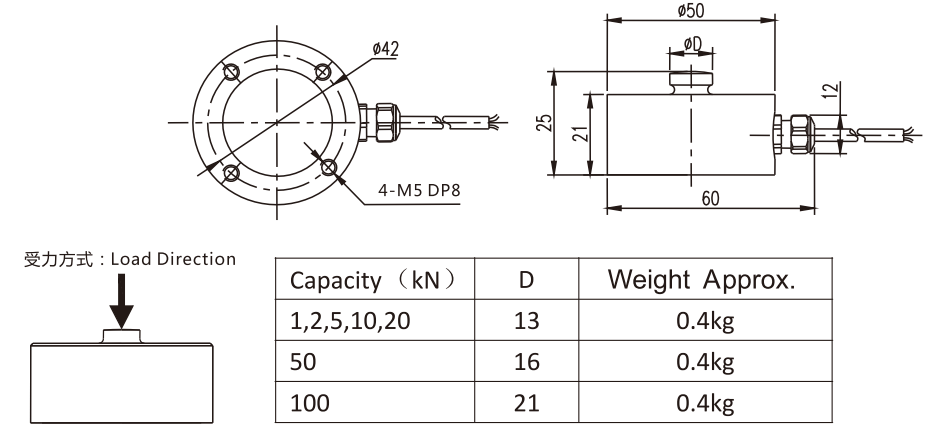

Dimension：
NV4 Specification：
|
Rated Capacities |
1-100kN |
|
Rated Output |
1.5mV/V±10% |
|
Zero Balance |
±0.0300 mV/V |
|
Non-linearity |
0.2%R.O. |
|
Hysteresis |
0.1%R.O. |
|
Repeatability |
0.1%R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.005%R.O./℃ |
|
Temperature Effect On Zero |
0.005%R.O./℃ |
|
Input Impedance |
780±20Ω |
|
Output Impedance |
700±10Ω |
|
Insulation Impedance |
≥5000 MΩ/(50VDC) |
|
Recommended Excitation |
5~15 VDC |
|
Maximum Excitation |
20 VDC |
|
Operating Temperature Range |
-20~80 ℃ |
|
Construction |
Stainless Steel |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ4×3m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
