Low Profile Micro Weight force Load Cell NV2（0.5-5kN）
The NV2 is miniature stainless steel sensor has the characteristics of high precision,high dynamic response,the tension compression load cell suitable for robot field and automation field.
Key Features：
Stainless steel material
Micro tension compression load cell
Usage & Applications：
Car press fitting,medical inspection,robot field and automation field.

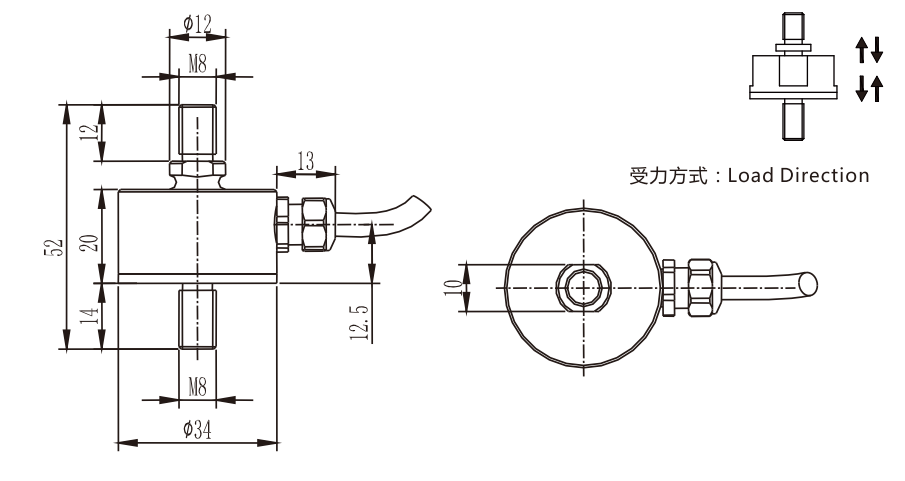

Dimension：
NV2 Specification：
|
Rated Capacities |
0.5-5kN |
|
Rated Output |
1.5mV/V±10% |
|
Zero Balance |
±0.0500 mV/V |
|
Non-linearity |
0.2%R.O. |
|
Hysteresis |
0.1%R.O. |
|
Repeatability |
0.1%R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.005%R.O./℃ |
|
Temperature Effect On Zero |
0.005%R.O./℃ |
|
Input Impedance |
700±10Ω |
|
Output Impedance |
700±10Ω |
|
Insulation Impedance |
≥5000 MΩ/(50VDC) |
|
Recommended Excitation |
5~15 VDC |
|
Maximum Excitation |
20 VDC |
|
Operating Temperature Range |
-20~80 ℃ |
|
Construction |
Stainless Steel |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ4×3m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
