High quality load cell sensor

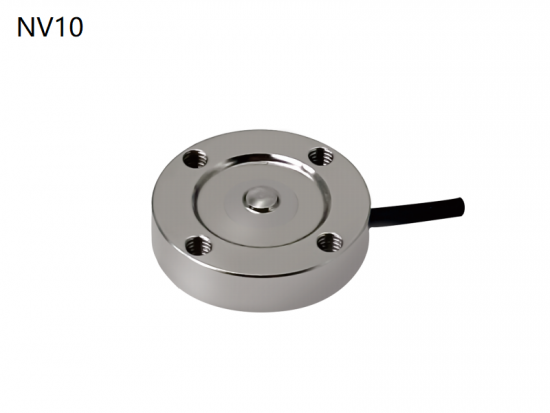

High Precision Micro Load Cell NV10

The micro transducer is low profile and high accuracy to measure compression force,highly dynamic response frequency for many applications.The mini load cell is also stainless steel material that can prevent corrosion and waterproof.
  • Item NO.:

    NV10
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    50-1000N
  • Material:

    Stainless Steel
  • Dimension:

    Φ20*5mm
  • Rated Output:

    1.5mV/V±20%
  • Protection Class:

    IP66/67
  • Cable:

    Φ2×3m
Inquiry Now
Product Details

High Precision Micro Load Cell NV10

The micro transducer is low profile and high accuracy to measure compression forcehighly dynamic response frequency for many applications.The mini load cell is also stainless steel material that can prevent corrosion and waterproof.



Key feature:

Micro transducer

Capacity:50-1000N

Precision: 0.5%R.O.

Protection class: IP66/PI67

Rated Output : 1.5mV/V±20%




Usage & Applications

It mainly used in the digital domainmedical inspection and industrial control system.

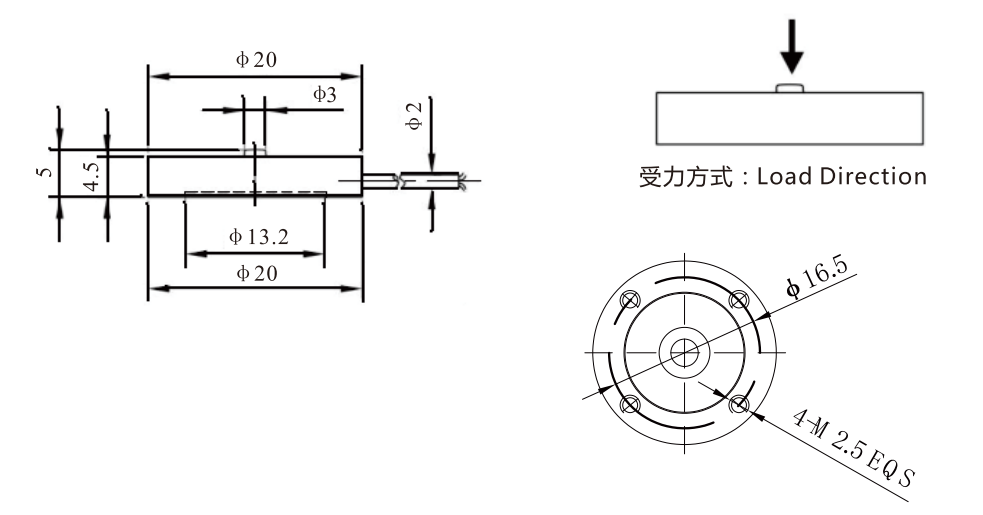

Dimension:







NV10 Specification:

Rated Capacities

50-1000N

Rated Output

1.5mV/V±20%

Zero Balance

±0.0500 mV/V

Non-linearity

0.5%R.O.

Hysteresis

0.5%R.O.

Repeatability

0.2%R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005%R.O./

Temperature Effect On Zero

0.005%R.O./

Input Impedance

800~1100Ω

Output Impedance

800~1100Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~80

Construction

Stainless Steel

Protection Class

IP66/IP67

Cable

Φ2×3m

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
