Miniature Stainless Steel Load Cell NV13
The miniature sensor NV13 is primarily force applied by means of pressure measurements, the micro load cell fully welded seal with stainless steel cover for hostile environment applications.Apply for car press fitting,medical inspection,robot field and industrial system.
Key feature:
Stainless steel construction
High dynamic response frequency
Usage & feature:
Car press fitting
Medical inspection
Robot field
Industrial system

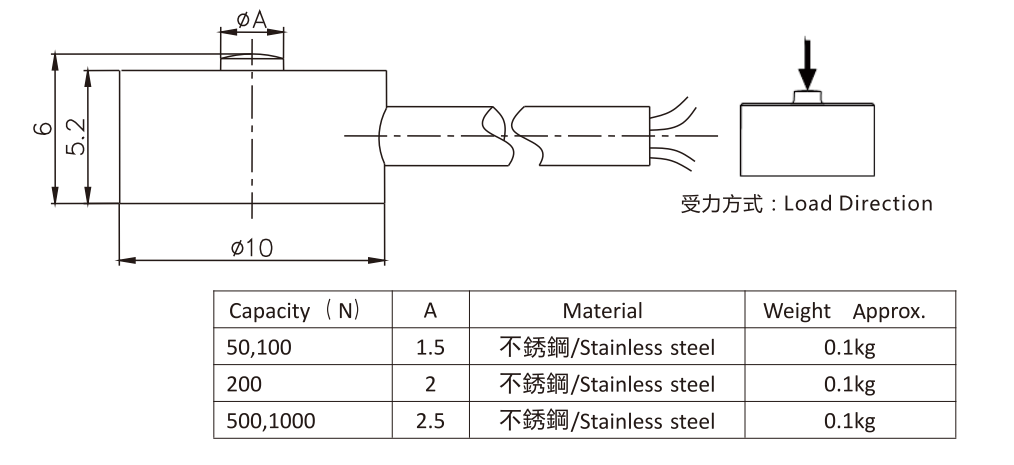

Dimension:
NV13 specification:
Rated Capacities
50-1000N
Rated Output
1.0mV/V±20%
Zero Balance
±0.0300 mV/V
Non-linearity
0.5%R.O.
Hysteresis
0.2%R.O.
Repeatability
0.2%R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.005%R.O./℃
Temperature Effect On Zero
0.005%R.O./℃
Input Impedance
800~1100Ω
Output Impedance
800~1100Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
Operating Temperature Range
-20~80 ℃
Construction
Stainless Steel
Protection Class
IP66/IP67
Cable
Φ2×3m
Recommended Platform Size
Mode of Connection
Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
