Low Profile Planer sensor NY23/B
The planer load cell NY23/B used in aluminium alloy material， very low profile，wide range of capacities and two matched output that is high precision can be used as single or multiple load cell structured platform scales.
Key Feature:
Aluminum alloy material
Capacity: 100/150kg
Precision: 0.03%R.O.
Protection class: IP65
Rated Output : 1.05~1.35mV/V
Usage & Application:
Widely applied for low platform scale,body scale and luggage scale.etc.

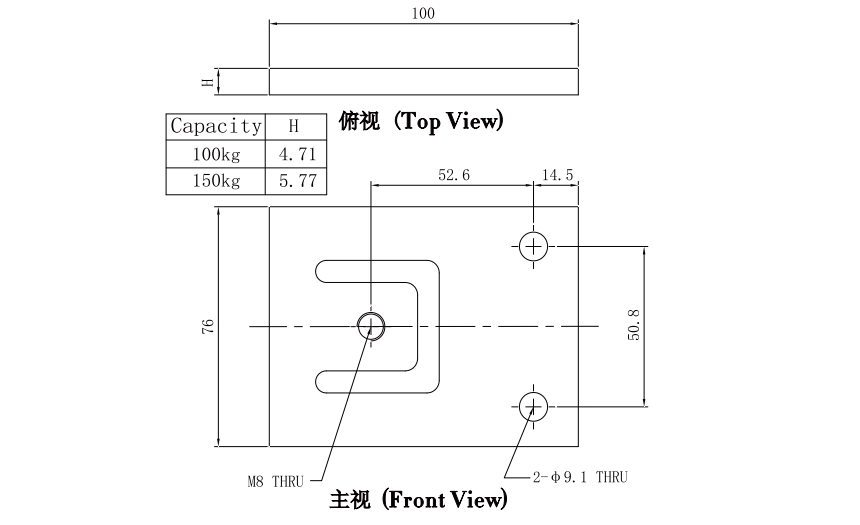

Dimension:
NY23/B specification:
|
Rated Capacities |
100/150kg |
|
Rated Output |
1.05~1.35mV/V |
|
Zero Balance |
±0.0500mV/V |
|
Non-linearity |
0.03 %R.O. |
|
Hysteresis |
0.03 %R.O. |
|
Repeatability |
0.03 %R.O. |
|
30mins Creep |
0.03 %R.O. |
|
30mins Return |
0.03 %R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.005%R.O./℃ |
|
Temperature Effect On Zero |
0.005 %R.O./℃ |
|
Input Impedance |
1100±100 Ω |
|
Output Impedance |
1000±10 Ω |
|
Insulation Impedance |
≥2000 MΩ/(50VDC) |
|
Recommended Excitation |
5~12 VDC |
|
Maximum Excitation |
15 VDC |
|
OperatingTemperatureRange |
-20~60 ℃ |
|
Construction |
Aluminum Alloy |
|
Protection Class |
IP65 |
|
Cable |
Φ0.8×0.6m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
