High Accuracy Stud Type load cell NY5/B(1-50KN)
The NY5/B is high precision and linearity load cell,small dimension tension and compression transducer for forklift scale,hopper scales and other automation field,stainless steel load cell is not only robust, but also ensures accuracy and stability of the measurement.
Key Features：
Stainless steel material
Tension and compression transducer
Usage & Applications：
Crane scales
Hopper scales
Industrial weighing system

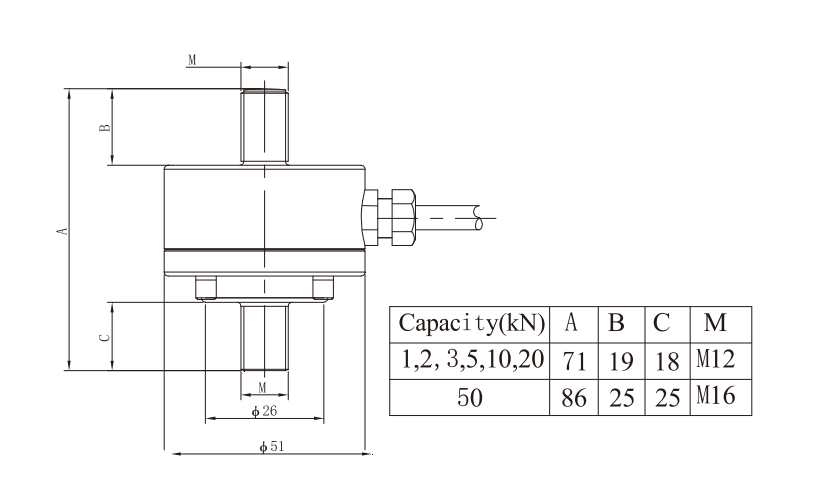

Dimension：
NY5/B Specification：
|
Rated Capacities |
1-50kN |
|
Rated Output |
1.5mV/V±10% |
|
Zero Balance |
±0.0300 mV/V |
|
Non-linearity |
0.2%R.O. |
|
Hysteresis |
0.1%R.O. |
|
Repeatability |
0.1%R.O. |
|
30mins Creep |
0.1%R.O. |
|
30mins Return |
0.1%R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.005 %R.O./℃ |
|
Temperature Effect On Zero |
0.005%R.O./℃ |
|
Input Impedance |
780±20Ω |
|
Output Impedance |
700±10Ω |
|
Insulation Impedance |
≥5000 MΩ/(100VDC) |
|
Recommended Excitation |
5~15 VDC |
|
Maximum Excitation |
20 VDC |
|
OperatingTemperatureRange |
-20~80 ℃ |
|
Construction |
Stainless Steel |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ4×3m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
