High quality load cell sensor

Aluminium Alloy Compression Load Cell NY29

The NY29 is aluminium alloy material load cell,the surface is anodized and coated with white glue that protects sensors against water and erosion.The load cell is high precision that can apply for multidirection force measuring systems,flat weighing and force measurement in confined spaces.
  • Item NO.:

    NY29
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    60kg
  • Material:

    Aluminium alloy
  • Dimension:

    Φ84*12.7*10mm
  • Rated Output:

    1.0 mV/V±15%
  • Protection Class:

    IP65
  • Cable:

    Φ4×0.22m
Inquiry Now
Product Details

Aluminium Alloy Compression Load Cell NY29

The NY29 is aluminium alloy material load cellthe surface is anodized and coated with white glue that protects sensors against water and erosion.The load cell is high precision that can apply for multidirection force measuring systemsflat weighing and force measurement in confined spaces.



Key Feature

Aluminium alloy

Capacity: 60kg

Precision: 0.1%R.O.

Protection class: IP65

Rated Output : 1.0 mV/V±15%





Usage & Application

Mainly used in flat weighing and force measurement in confined spaces.

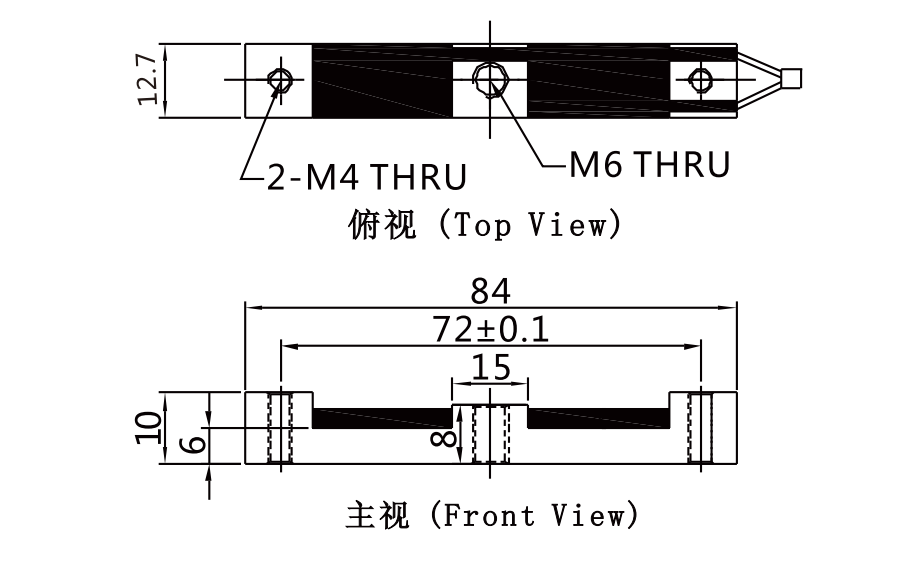

Dimension





NY29 specification

Rated Capacities

60kg

Rated Output

1.0 mV/V±15%

Zero Balance

±0.0500mV/V

Non-linearity

0.1 %R.O.

Hysteresis

0.1 %R.O.

Repeatability

0.1 %R.O.

30mins Creep

0.1 %R.O.

30mins Return

0.1 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Input Impedance

1000±10 Ω

Output Impedance

1000±10 Ω

Insulation Impedance

3000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP65

Cable

Φ4×0.22m

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
