High quality load cell sensor

Micro Button Compression Force Load Cell NV8

The NV8 is miniature stainless steel load cell,it has high precision,high dynamic response frequency and anti-erosion even in harsh environments.The button compression force load cell mainly used in car press fitting,medical inspection and the industrial control system.
  • Item NO.:

    NV8
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    50-500N 1-20kN
  • Material:

    Stainless Steel
  • Dimension:

    Φ20*11mm
  • Rated Output:

    1.5mV/V±20%
  • Protection Class:

    IP66/67
  • Cable:

    Φ3×3m
Inquiry Now
Product Details

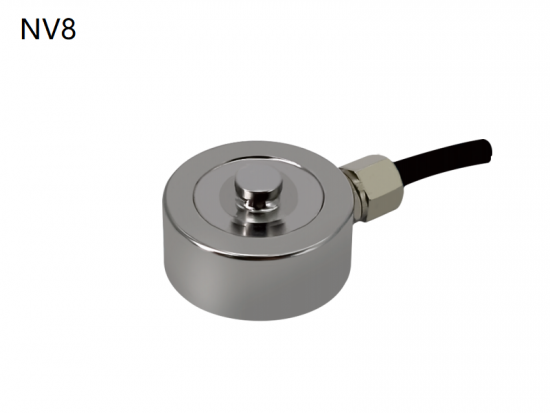

Micro Button Compression Force Load Cell NV8

The NV8 is miniature stainless steel load cell,it has high precision,high dynamic response frequency and anti-erosion even in harsh environments.The button compression force load cell mainly used in car press fitting,medical inspection and the industrial control system.



Key feature:

Stainless steel

Mini load cell




Usage & Applications

Mainly applied in car press fitting,medical inspection and industrial control system.

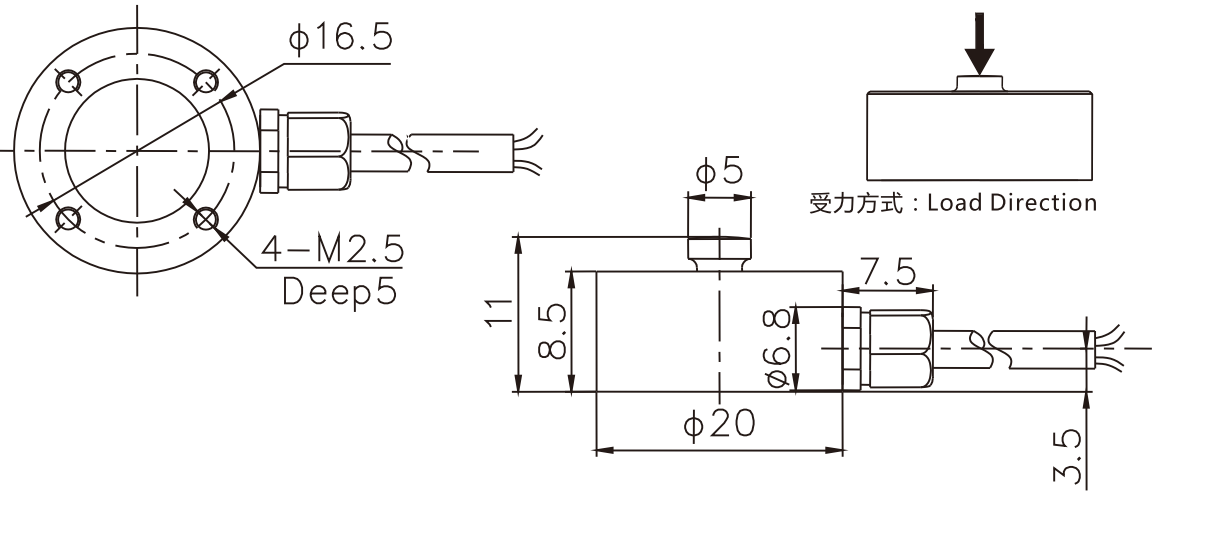

Dimension:





NV8 specification:

Rated Capacities

50-500N   1-20kN

Rated Output

1.5mV/V±20%

Zero Balance

±0.0500 mV/V

Non-linearity

0.5%R.O.

Hysteresis

0.2%R.O.

Repeatability

0.2%R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005%R.O./

Temperature Effect On Zero

0.005%R.O./

Input Impedance

800~1100Ω

Output Impedance

800~1100Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~15 VDC

Maximum Excitation

20 VDC

OperatingTemperatureRange

-20~80

Construction

Stainless Steel

Protection Class

IP66/IP67

Cable

Φ3×3m

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
