Stainless Steel Micro Column Load Cell NV7
The micro load cell NV7 is stainless steel construction that low distortion,low profile,high precision and high dynamic response frequency.It can carry out tension and compression two-way force measurement,corrosion-resistant.
Key feature:
Stainless steel material
Low profile
Capacity: 20-2000N
Precision: 0.05%R.O.
Protection class: IP66/PI67
Rated Output : 2.0mV/V±10%
Usage & Applications:
Mainly used in car assembly force value test,push-pull dynamometer ,robot field and industrial control system.

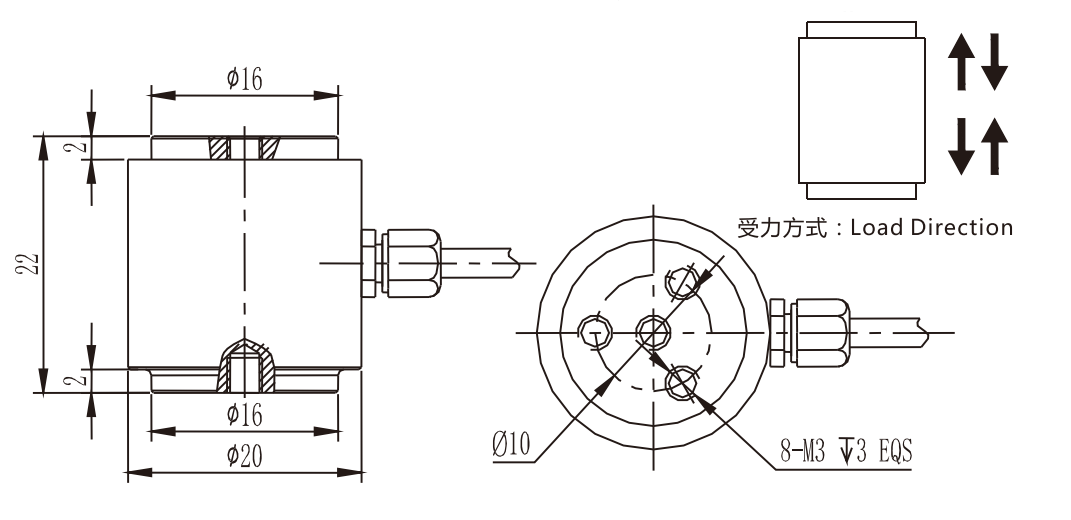

Dimension:
NV7 specification:
Rated Capacities |
20-2000N |
Rated Output |
2.0mV/V±10% |
Zero Balance |
±0.0500 mV/V |
Non-linearity |
0.05%R.O. |
Hysteresis |
0.05%R.O. |
Repeatability |
0.05%R.O. |
Safe Overload |
150 %R.O. |
Ultimate Overload |
200 %R.O. |
Temperature Effect On Output |
0.005%R.O./℃ |
Temperature Effect On Zero |
0.005%R.O./℃ |
Input Impedance |
650/350±10Ω |
Output Impedance |
650/350±10Ω |
Insulation Impedance |
≥5000 MΩ/(50VDC) |
Recommended Excitation |
5~12 VDC |
Maximum Excitation |
15 VDC |
OperatingTemperatureRange |
-20~80 ℃ |
Construction |
Stainless Steel |
Protection Class |
IP66/IP67 |
Cable |
Φ3×3m |
Recommended Platform Size |
|
Mode of Connection |
Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
