Single point Load Cell NA175 (10-50kg)
NA175 single point load cell is made with aluminum alloy element. The strain gauge installed load cell is commonly used in weighting equipment for small loads up to 50kg.
Key Features：
Aluminum alloy construction
Easy to install
Long term, reliable operation
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

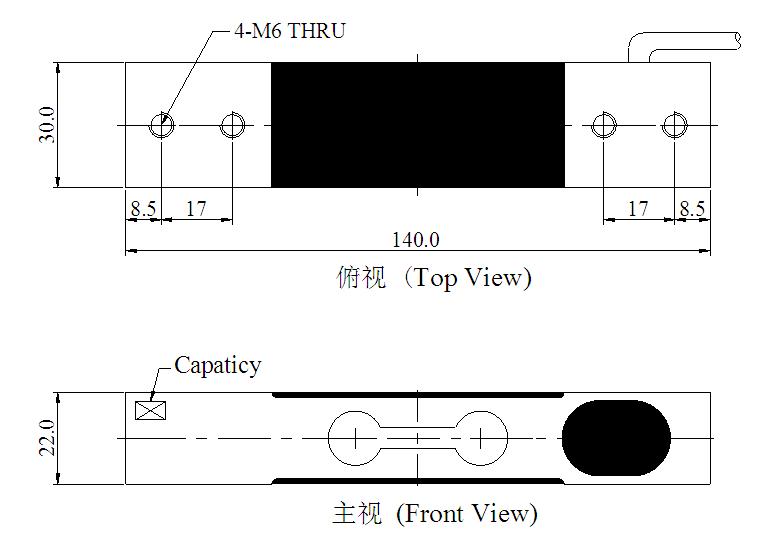

Dimension：
NA175 Specification：
Rated
Capacities
10,
20 ,30 , 40 , 50 (kg)
Rated
Output
2.0
mV/V±10%
Zero
Balance
±0.0200
mV/V
Non-linearity
0.02
%R.O.
Hysteresis
0.02
%R.O.
Repeatability
0.02
%R.O.
30mins
Creep
0.02
%R.O.
30mins
Return
0.02
%R.O.
Safe
Overload
150
%R.O.
Ultimate
Overload
200
%R.O.
Temperature
Effect On Output
0.002
%R.O./℃
Temperature
Effect On Zero
0.003
%R.O./℃
Input
Impedance
410±15
Ω
Output
Impedance
350±5
Ω
Insulation
Impedance
≥5000
MΩ/(50VDC)
Recommended
Excitation
5~12
VDC
Maximum
Excitation
15
VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum
Alloy
Protection
Class
IP66
/ IP67
Cable
Φ4*0.75m
Recommended
Platform Size
300x300 mm
Mode
of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
