Low Price Load Cell NA1 (10-40kg)
NA200 is a low price load cell with single point construction and surface anodized, made with aluminum alloy material. This counting scale load cell is available in the capacities: 10, 20, 40kg.
Key Features：
Aluminum alloy construction
Compact Design
Easy to install
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

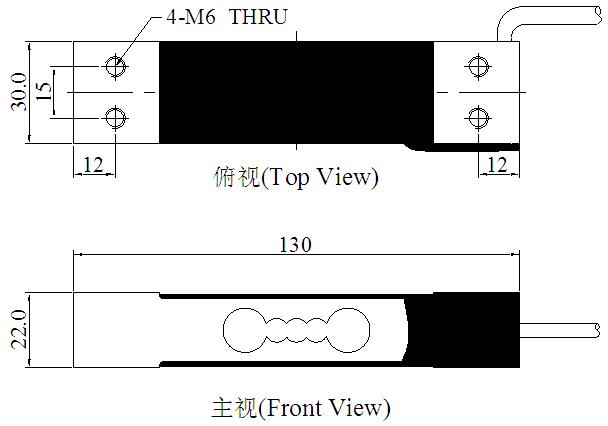

Dimension：
NA200 Specification：
Rated Capacities
10, 20, 40 (kg)
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.009 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP65
Cable
φ4×0.45m (gray)
Recommended Platform Size
300×300 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,Blue（SIG+）,White（SIG-）
