Steel Alloy Spoke Type Load Cell NQ15（0.5-60T）
The NQ15 is steel alloy wheel shaped load cell for hopper scale, truck scale and rail weighbridge, compression load cell with waterproof connector to guarantee stable quality of performance.
Key Features:
Steel alloy material
Capacity: 0.5-60t
Precision: 0.03%R.O.
Protection class: IP66/PI67
Rated Output: 2.0mV/V±0.25%
Usage & Applications：
Hopper Scale
Industrial weighing system

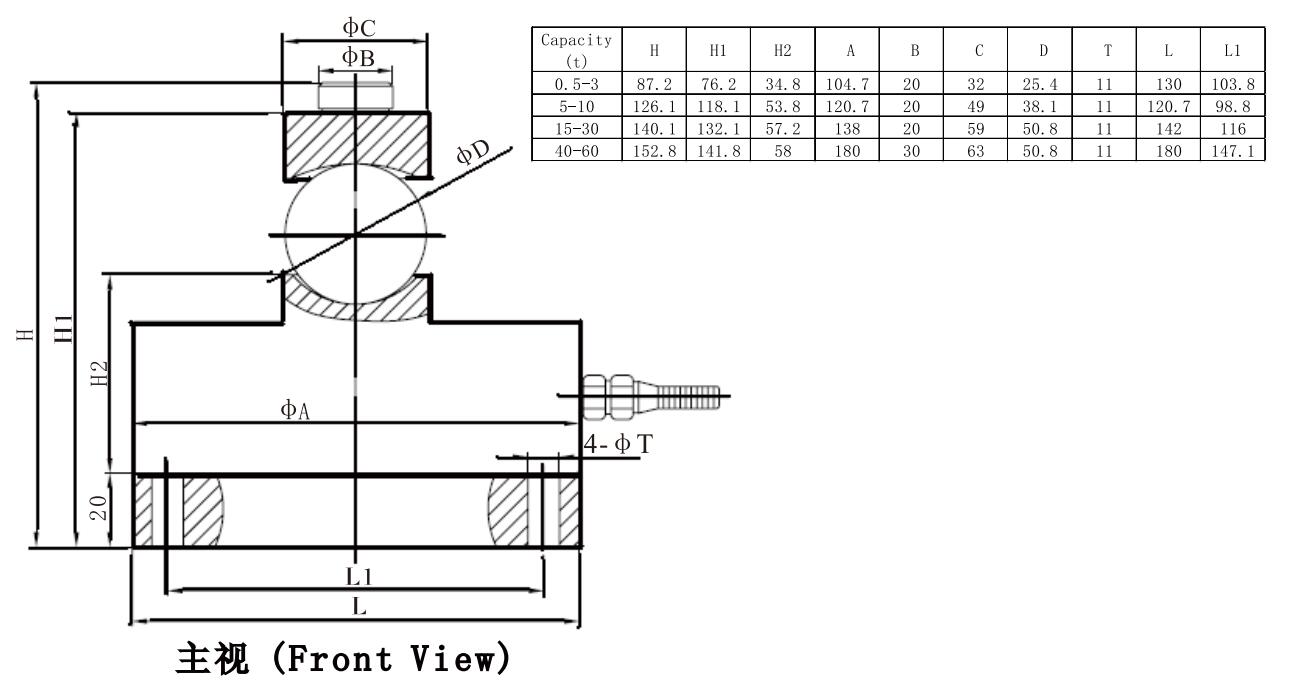

Dimension:
NQ15 Specification:
|
Rated Capacities |
0.5-3/5-10/15-30/40-60(t) |
|
Rated Output |
2.0 mV/V±0.25% |
|
Zero Balance |
±0.0200 mV/V |
|
Non-linearity |
0.03 %R.O. |
|
Hysteresis |
0.03%R.O. |
|
Repeatability |
0.03%R.O. |
|
30mins Creep |
0.03%R.O. |
|
30mins Return |
0.03 %R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.002 %R.O./℃ |
|
Temperature Effect On Zero |
0.003 %R.O./℃ |
|
Input Impedance |
385±15 Ω; 750±15 Ω |
|
Output Impedance |
350±5 Ω; 700±5 Ω |
|
Insulation Impedance |
≥5000 MΩ/(50VDC) |
|
Recommended Excitation |
5~12 VDC |
|
Maximum Excitation |
15 VDC |
|
OperatingTemperatureRange |
-20~60 ℃ |
|
Construction |
Steel Alloy |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ6×3m (0.5t-3t); Φ6×6m(5t-60t） |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
