Spoke Compression Force Sensor Cell NQ32（0.1-30T）
The NQ32 is steel alloy low profile load cell, large dimension, Spoke compression sensor for a higher capacity range for Industrial weighing system, batching scale, boat scale, sealed by white silicone with waterproof connector to guarantee stable quality of performance.
Key Features：
Steel alloy material with potting compound
Capacity: 0.1-30t
Precision: 0.05%R.O.
Protection class: IP66/PI67
Rated Output: 2.0 mV/V±0.15%
Usage & Applications：
Batching scales
Industrial weighing system

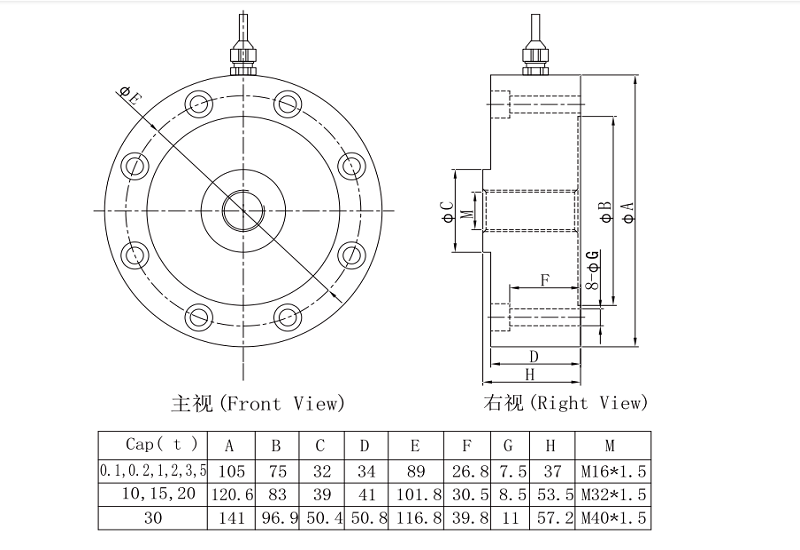

Dimension：
NQ32 Specification：
|
Rated Capacities |
0.1/0.2/1/2/3/5/10/15/20/30(t) |
|
Rated Output |
2.0 mV/V±0.15% |
|
Zero Balance |
±0.0200 mV/V |
|
Non-linearity |
0.05 %R.O. |
|
Hysteresis |
0.05%R.O. |
|
Repeatability |
0.03%R.O. |
|
30mins Creep |
0.05%R.O. |
|
30mins Return |
0.05%R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200%R.O. |
|
Temperature Effect On Output |
0.002%R.O./℃ |
|
Temperature Effect On Zero |
0.002%R.O./℃ |
|
Input Impedance |
780±20 Ω |
|
Output Impedance |
700±10 Ω |
|
Insulation Impedance |
≥5000 M/(100VDC) |
|
Recommended Excitation |
5~15VDC |
|
Maximum Excitation |
20 VDC |
|
OperatingTemperatureRange |
-10~70 ℃ |
|
Construction |
Steel Alloy |
|
Protection Class |
IP66/IP67 |
|
Cable |
Φ6×5m |
|
Recommended Platform Size |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
