Low Profile Single Point Load Cell NA157(50-150kg)

The NA157 is parallel beam load cell,aluminum alloy single point load cell for pet scale.The low profile weight sensor is easy to calibrate, high-precision, and easy to operate.
  • Item NO.:

    NA157
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    50,100,150(kg)
  • Material:

    Aluminum Alloy
  • Dimension:

    100*18*20mm
  • Rated Output:

    1.5mV/V±10%
  • Protection Class:

    IP66/IP67
  • Cable:

    φ4×1.6m (4PCS/Set)
Inquiry Now
Product Details

Low Profile Single Point Load Cell NA15750-150kg

The NA157 is parallel beam load cell,aluminum alloy single point load cell for pet scale.The low profile weight sensor is easy to calibrate, high-precision, and easy to operate.



Key Features

Aluminum alloy material

Capacity: 50-150kg

Precision: 0.1%R.O.

Protection class: IP66/PI67

Rated Output: 1.5mV/V±10%



Usage & Applications

Pet scale

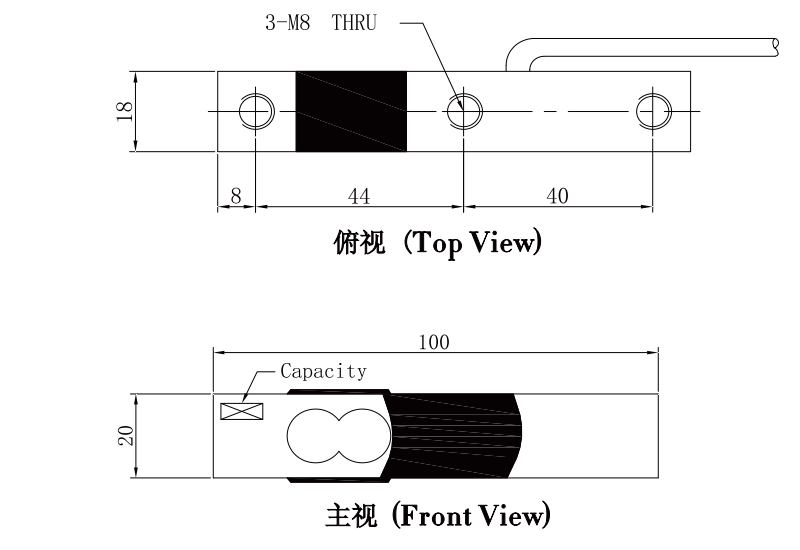

Dimension





NA157 Specification

Rated Capacities

50,100,150(kg)

Rated Output

1.5mV/V±10%

Zero Balance

±0.0500 mV/V

Non-linearity

0.1%R.O.

Hysteresis

0.1%R.O.

Repeatability

0.1%R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.01 %R.O./

Temperature Effect On Zero

0.05 %R.O./

Input Impedance

1115±10%Ω

Output Impedance

1000±10%Ω

Insulation Impedance

2000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66/IP67

Cable

φ4×1.6m (4PCS/Set)

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
