Low Capacity OIML Approval Single Point Load Cell NA96

The NA96 is aluminium alloy strain gauge load cell,high precision and solid structure can apply for a lot of measurement.The single point weight sensor is suitable for kitchen scale,portable scale.etc.
  • Item NO.:

    NA96
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    1~30kg
  • Material:

    Aluminium alloy
  • Dimension:

    Φ80*12*22mm;Φ80*18*22mm
  • Rated Output:

    2.0 mV/V±10%
  • Protection Class:

    IP66/67
  • Cable:

    Φ3×0.3m
Inquiry Now
Product Details

Low Capacity OIML Approval Single Point Load Cell NA96

The NA96 is aluminium alloy strain gauge load cellhigh precision and solid structure can apply for a lot of measurement.The single point weight sensor is suitable for kitchen scaleportable scale.etc.



Key Feature

Aluminium alloy

Capacity: 1~30kg

Precision: 0.03%R.O.

Protection class: IP66/67

Rated Output : 2.0mV/V±10%





Usage & Application:

Mainly used in kitchen scale,portable scale.

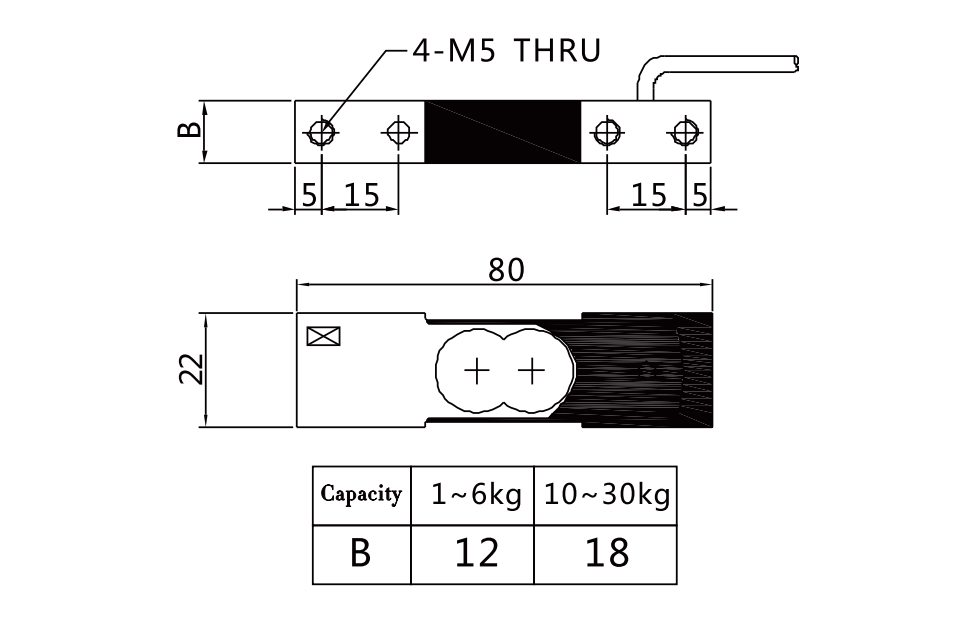

Dimension:





NA96specification:

Rated Capacities

1~30kg

Rated Output

2.0 mV/V±10%

Zero Balance

±0.1000mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.01%R.O./

Temperature Effect On Zero

0.05 %R.O./

Input Impedance

1115±10 %Ω

Output Impedance

1000±10 %Ω

Insulation Impedance

2000MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP666/67

Cable

Φ3×0.3m

Recommended Platform Size



Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
