High profile NA170 Single Point Load Cell
The NA170 is an aluminum bending beam load cell made from aluminum. The high profile single point load cell is suitable for hopper scale. The hopper scale weighing sensor delivers highly precise and reliable measuring results even in long-term use.
Key Features：
High profile with low capacity
Aluminum
construction with surface anodized
Capacity: 4-20kg
Accuracy:0.02%R.O.
Usage & Applications：
Hopper scales

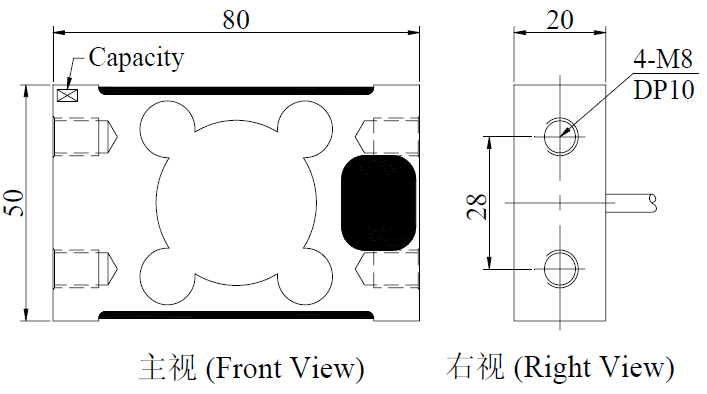

Dimension：
NA170 Specification：
Rated Capacities
4,
8, 15, 20（kg）
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
Φ4*0.16m
Recommended Platform Size
Mode of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
