High profile Hopper Scale Load Cell
The NA203 is high profile hopper scale load cell with compact design. The aluminum bending load cell is suitable for hopper scale. The hopper scale weight sensor delivers highly precise and reliable measuring results even in long-term use.
Key Features：
Aluminum construction with surface anodized
Capacity: 10, 15, 25kg
Accuracy:0.02%R.O.
Usage & Applications：
Hopper scales

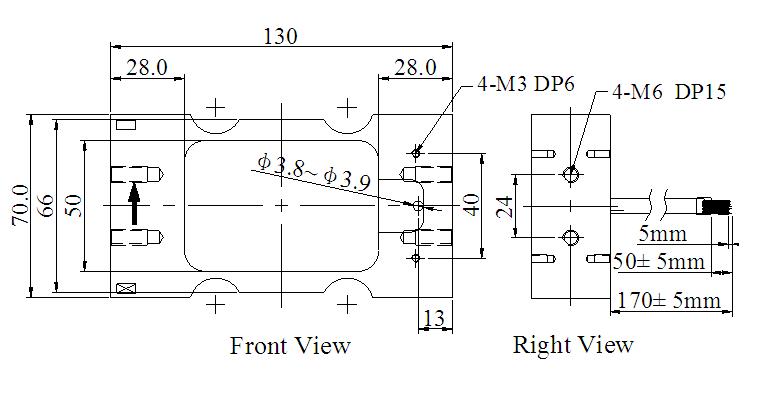

Dimension：
NA203 Specification：
Rated Capacities
10, 15, 25（kg）
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
Φ3*0.17m
Recommended Platform Size
Mode of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
