Mavin NA151 Single Point Load Cell low capacity 10-200kg
The NA151 is a industrial single point load cell made from aluminum. The low capacity weight sensor is suitable for the instrument to switch from mechanic to electronic.
Key Features：
Aluminum construction with surface anodized
Capacity: 10-200kg
Accuracy:0.02%R.O.
Usage & Applications：
The instrument to switch from mechanic to electronic.

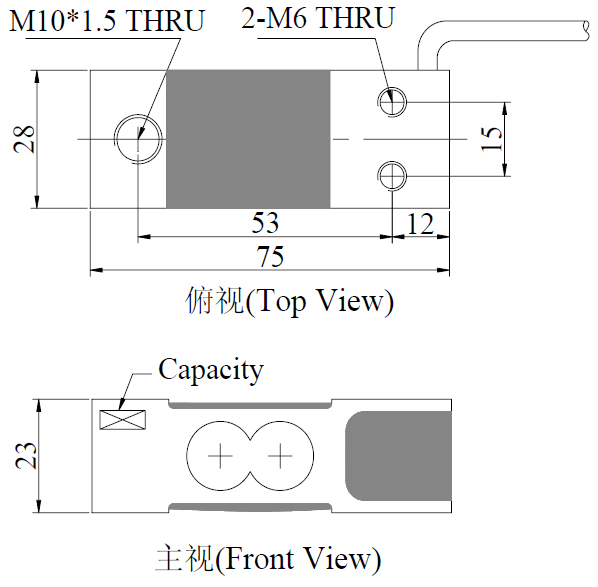

Dimension：
NA151 Specification：
Rated Capacities
10, 20 ,40 , 60 , 120 , 150, 200 (kg)
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ4×0.5m
Recommended Platform Size
300×300 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
