Single Point Load Cell NA177 (50-300kg)
Single point weighing sensor NA177 delivers highly precise and reliable measuring results even in long-term use. The aluminum parallel beam sensor can be used individually in smaller bench scales and retail scales.
Key Features：
Calibrated to national standards
Aluminum alloy construction
Compact Design
Easy to install
Long term, reliable operation
Usage & Applications：
Platform
scales
Bench scales
Retail
scales
Pricing scales
Counting scales

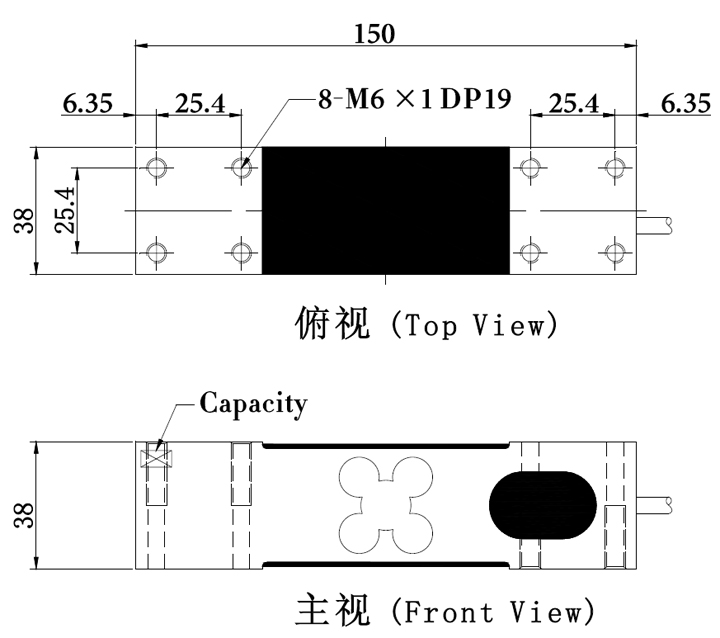

Dimension：
NA177 Specification：
Rated Capacities
50,100,200,300 (kg)
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ5×2m
Recommended Platform Size
350×450 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
