Single Point Load Cell NA1/H (10-40kg)
NA1/H is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales.
Key Features：
Aluminum alloy construction
Compact Design
Easy to install
Long term, reliable operation
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

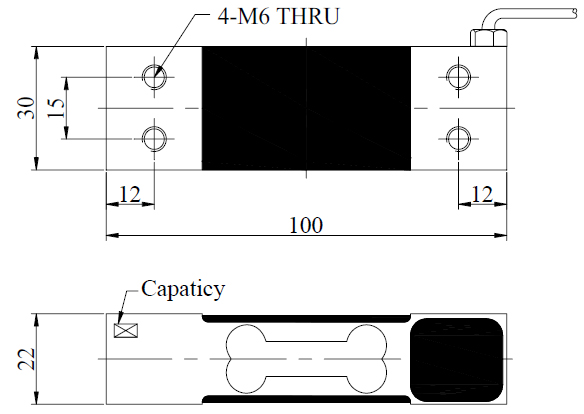

Dimension：
NA1/H Specification：
Rated Capacities
10~40 (kg)
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ4×0.5m
Recommended Platform Size
350×350 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
