High Profile Load Cell NA116 (250-500kg)
NA116 is a high profile platform load cell with aluminum alloy construction. The single ended parallel beam load cell delivers highly precise and reliable measuring results even in long-term use.
Key Features：
Calibrated to national standards
Aluminum alloy construction
Compact Design
Easy to install
Long term, reliable operation
Usage & Applications：
Platform
scales
Bench scales
Retail
scales
Pricing scales
Counting scales

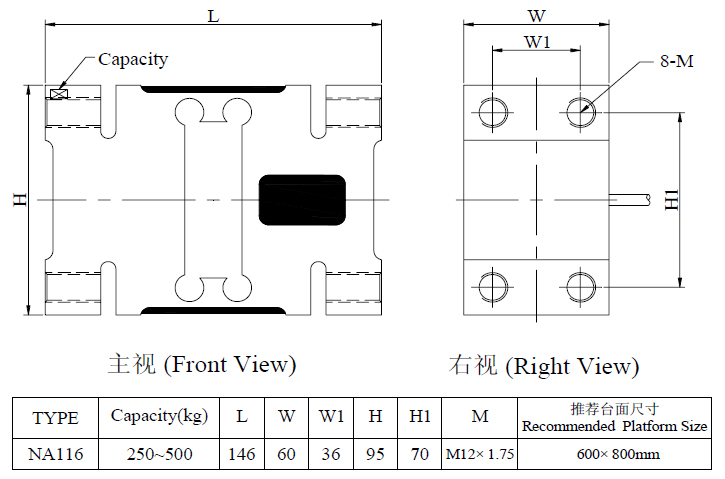

Dimension：
NA116 Specification：
Rated Capacities
250，500 （kg）
Rated Output
2.0 mV/V±5%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
鋁合金Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ6×3m
Recommended Platform Size
Mode of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
