High Accuracy Load Cell NA3 C3
NA3 C3 single point load cell is popular for its High accuracy OIML approved with aluminum alloy construction. The High profile platform load cell is widely used in retail scales, bench scales, small platform scales, multi-head weighers, medical scales.
Key Features：
Accuracy class C3
Calibrated to national standards
Aluminum alloy
Compact Design
Easy to install
Long term, reliable operation
Usage & Applications：
Platform
scales
Bench scales
Retail scalesPricing scales
Counting scales

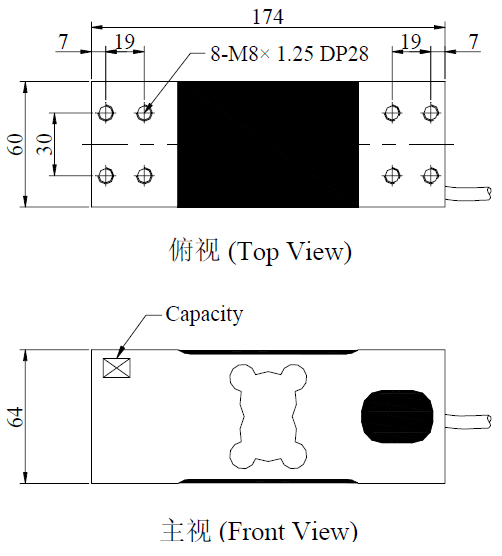

Dimension：
NA3 Specification：
Rated Capacities
60~1200(kg)
Rated Output
2.0 mV/V±5%
Zero Balance
±0.0200 mV/V
Accuracy class
OIML C3
Max No.of
loadcell interval(nmax)
3000
Min No.of
loadcell interval(Vmin)
Emax/7000
Non-linearity
0.017 %R.O.
Hysteresis
0.017 %R.O.
Repeatability
0.017 %R.O.
30mins Creep
0.017 %R.O.
30mins Return
0.017 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.0015 %R.O./℃
Temperature Effect On Zero
0.002 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ5×2m
Recommended Platform Size
600×600 mm；600×800 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
