Floor scale beam load cell 2.5-7.5t
NB3 is one of popular Single Ended Shear Beam load cell for applications such as industrial floor scales, barrel scales, and low to medium capacity vessel weighing. The floor scale load cells are available in a range of environmental sealing up to IP67.
Key Features：
Environmentally sealed by potting
Alloy steel construction
Capacity: 2.5-7.5 t
Usage & Applications：
Hopper scales
Truck scales
Industrial weighing system

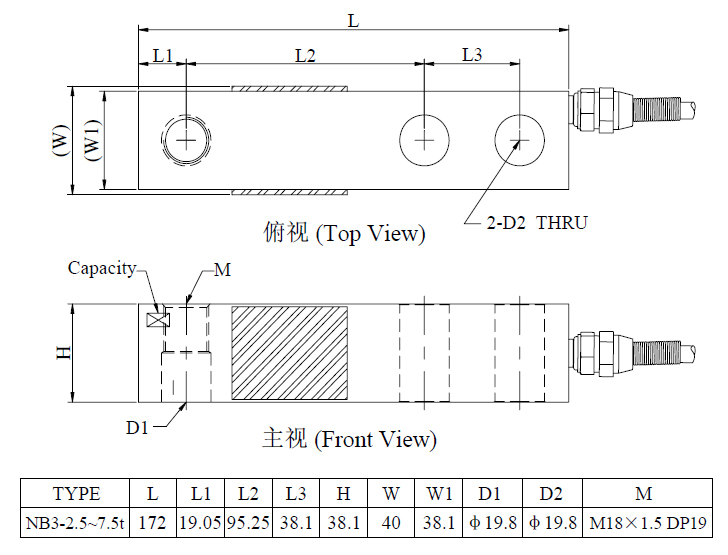

Dimension：
NB3 Specification：
Rated
Capacities
2.5，3，5，7.5 (t)
Rated
Output
2.0
mV/V±0.15%；3.0 mV/V±0.15%
Zero
Balance
±0.0200
mV/V
Non-linearity
0.03
%R.O.
Hysteresis
0.03
%R.O.
Repeatability
0.03
%R.O.
30mins
Creep
0.03
%R.O.
30mins
Return
0.03
%R.O.
Safe
Overload
150
%R.O.
Ultimate
Overload
200
%R.O.
Temperature
Effect On Output
0.002
%R.O./℃
Temperature
Effect On Zero
0.003
%R.O./℃
Input
Impedance
390±15
Ω
Output
Impedance
350±5
Ω
Insulation
Impedance
≥5000 MΩ/(50VDC)
Recommended
Excitation
5~12
VDC
Maximum
Excitation
15
VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Steel
Alloy
Protection
Class
IP67
/ IP68
Cable
φ5×6m
Recommended
Platform Size
Mode
of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
