Single Point Load Cell NA48 (60-200kg)
NA48 is a low profile single ended parallel beam load cell with aluminum alloy material and surface anodized, suitable for a wide range of weighing scales. The strain gauge based weight sensor is potted and silicone sealed construction, protected to IP66.
Key Features：
Calibrated to national standards
Aluminum alloy construction
Easy to install
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales
postal scales

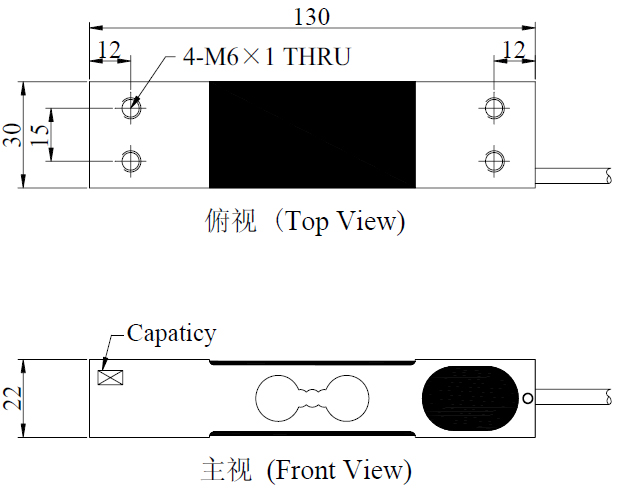

Dimension：
NA48 Specification：
Rated Capacities
60 , 80 , 100 , 120 , 200 (kg)
Rated Output
2.0 mV/V±10%
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω；1130±30 Ω
Output Impedance
350±5 Ω； 1000±10 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ4×0.5m
Recommended Platform Size
350×350 mm
Mode of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
