Aluminum alloy Tension Load Cell NS7 (10-20 KG)
NS7 is S beam force sensor with good protection and high accuracy. The Aluminum S beam construction load cell is suitable for applications such as hanging scale and hopper scale with low capacity from10kgto20kg.
Key Features：
Low profile
Aluminum alloy construction
Capacity: 10-20 KG
Easy to install, stable & reliable
Usage & Applications：
Hopper
scales
Crane scales
Tension control and machine testing

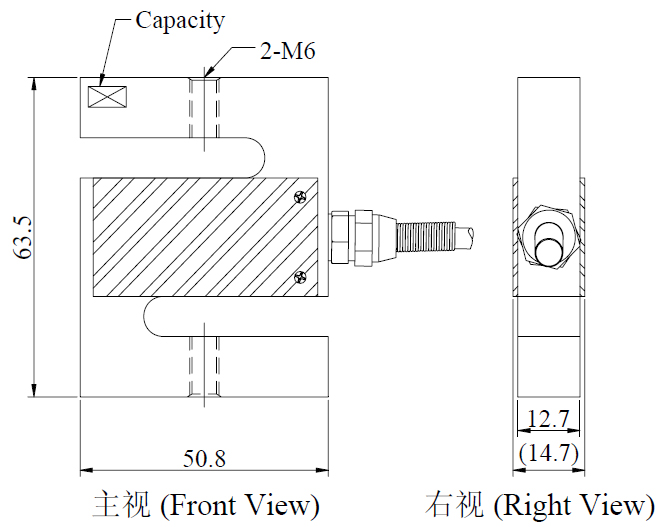

Dimension：
NS7 Specification：
Rated
Capacities
10，20 (kg)
Rated
Output
2.0
mV/V±0.25%
Zero
Balance
±0.0200
mV/V
Non-linearity
0.03
%R.O.
Hysteresis
0.03
%R.O.
Repeatability
0.03
%R.O.
30mins
Creep
0.03
%R.O.
30mins
Return
0.03
%R.O.
Safe
Overload
150
%R.O.
Ultimate
Overload
200
%R.O.
Temperature
Effect On Output
0.002
%R.O./℃
Temperature
Effect On Zero
0.003
%R.O./℃
Input
Impedance
390±15
Ω
Output
Impedance
350±5
Ω
Insulation
Impedance
≥5000 MΩ/(50VDC)
Recommended
Excitation
5~12
VDC
Maximum
Excitation
15
VDC
Operating Temperature Range
-20~60 ℃
Construction
Aluminum Alloy
Protection
Class
IP66 / IP67
Cable
φ5×2 m
Recommended
Platform Size
Mode
of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
