NA7/B Aluminum Alloy Load Cell
The NA7/B is a small weight sensor with aluminum alloy construction. The Low capacity load cell is easy to install and suitable for the pricing scale, counting scale and balance.
Key Features:
Low capacity
Aluminum
construction with surface anodized
Capacity: 5kg
Easy to install
Usage & Applications:
Pricing scales
Counting scales
Balance

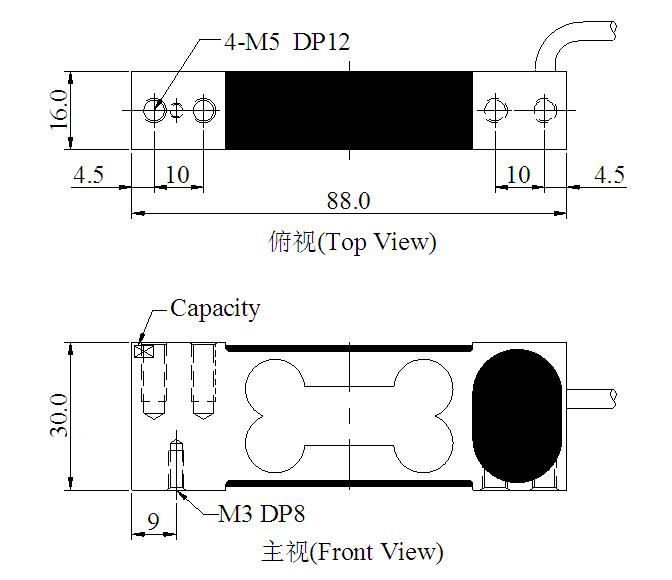

Dimension:
NA7/B Specification:
Rated Capacities
5(kg)
Rated Output
(1.35~1.65)mV/V
Zero Balance
±0.0200 mV/V
Non-linearity
0.02 %R.O.
Hysteresis
0.02 %R.O.
Repeatability
0.02 %R.O.
30mins Creep
0.02 %R.O.
30mins Return
0.02 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.002 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
410±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Aluminum Alloy
Protection Class
IP66 / IP67
Cable
φ4×22cm
Recommended Platform Size
200×200 mm
Mode of Connection
Red(EXC+),Black(EXC-),
Green(SIG+),White(SIG-)
